Windows Firewall Control (WFC) by BiniSoft.org

Okay....now I'm finding one U -@

Do I need to add my one U -@ to Group @ ? #3509



Thanks mood for shining light on this, very good.



This dialog is displayed when you create a new firewall rule through Shell Integration feature. Currently, WFC intercepts when a new rule is added in Windows Firewall when Secure Rules is enabled. Unfortunately, there is no way to tell which external application added a new rule as the event only contains the path of the new rule.

You have rules prefixed with "U - " only if you enable Secure Rules and you set it to disable unauthorized rules. You may still have these kind of rules after a policy reset if Secure Rules was not actually disabled.
Rules that start with @ will be created by the operating system (Windows 10) for Windows Store apps only. When you reset your policy to the default one you will not have any @ prefixed rules. If you start a few Windows Store apps you will see new rules that start with @. To prevent Secure Rules from disabling/removing these rules, you can add @ (just a single char) as an authorized group name. Then, the rules for these Windows Store apps will not be removed/disabled by Secure Rules.

WFC can't decide which duplicate rules to remove because multiple similar rules can have different group names, names, descriptions, and maybe the user wants to remove the one that doesn't have his custom description, etc. If you are not sure which ones to remove, just pick any of them and remove the others. Nothing bad would happen if you do this.

Check the following help topic from the user manual:
User interface > Main Panel > Rules > Windows Firewall Control recommended rules

This is a minimal set of rules that are actually required. On top of this set of rules, you could add only a few more rules for the programs that you really want to allow to connect to the Internet. For example, on my computer I have maximum 30 firewall rules and no inbound rules at all.

There are duplicate rules, even in the default Windows Firewall set of rules because when you enable/disable certain functionalities of the operating system, the operating system just enables/disables a specific group name.



Ah, ok - I don't use the shell integration. I already knew, that "Secure Rules" can be helpful.
But it doesn't exactly fit my purpose:
- If a rule is added (or changed), which is in a known group, the "Secure Rules" feature is not helpful. Its purpose is to disable/delete rules in new groups. (Many setup programs recreate their original rules on any update, but sometimes I use only a restricted subset; also if a setup enables Windows default rules, "Secure Rules" is ineffective - a workaround is to put all rules to custom groups).
- I get no notification, that I should look at my config, when something changes. I have to look in my rules to see what changed from time to time. With a notification I'd be able to associate a change in the Windows default policies with a setup program, which I've executed at the time, the policy has been modified.

I understand, that it's not possible to see which process caused the change. But a message like this - or better additionally with the display name (and group) of the rule would be really helpful for me. Ideally a click on the message opens the rules panel with matching filters, so that I could easily inspect the new rule(s).
It's based on monitoring changes of the rule set. I don't know if this is possible or if anyone else might find it useful. It's clearly not helpful for novice users who don't want to mess around with network locations, protocols and ports.



A very small issue I'm seeing is that the state of the windows isn't always remembered. For example, I always use the Rules Panes in maximized mode, but about 4 out of 10 times it will open -either from tray or HotKey- in a small, non-maximized window.

Perhaps related to how (Microsoft's) Windows operates.



I did 'Reset all settings to the default values' & did 'Restore Windows Firewall default set of rules' & did 'Restore Windows Firewall Control recommended rules'.
I did not re-enable Secure Rules nor set it to 'disabled' after I did 'Reset all settings to the default values'. Maybe, 'Reset' requires machine restart to clear all WFC settings to the default values.

Hmm, Windows Store apps only. Okay. So, then my added @ looks okay and only applies to Windows Store apps. Aha. Lite-bulb. @=apps.
#3509
head scratch for me is that now I only find one @
#3515
Okay, I'll monitor @ upon starting Windows Store apps.

So, maybe I needed to first uncheck Secure Rules and then do 'Reset all settings to the default values'.
Guess, I assumed 'Reset all settings to the default values' included Secure Rules.

I'll leave duplicate rules, as is, for now. Seems harmless (for now) to have 'duplicate rules'.

Ahh, okay....duplicate rules even in default Windows Firewall set of rules.

Yes, Windows Firewall Control recommended rules are easy to see and readily understood thru 'Restore Windows Firewall Control recommended rules'.
Thanks - Regards w Respect



Check this forum post:
https://www.wilderssecurity.com/thr...-by-binisoft-org.347370/page-122#post-2669280

Any reset in WFC, nor install/uninstall, etc. does not require a computer restart. Never. This is something that Windows 98 would require

I just spot a bug in WFC code. If you reset user settings, they are reset but Secure Rules, if enabled, remains enabled in WFC service. I will fix this in the next version. Thank you for finding this.



Thanks, probably happens because of frequent usage of a 2nd monitor in extend mode. Also using custom 125% DPI but that's a permanent setting, I don't change it.



Ahh, I was just about to post (after re-testing) that I stand by my comments.
Thank you for confirming this.
Seems, once I have U prefix. I'm not able to clear U prefix, even with 'Secure rules' un-tick nor even with reset user settings.



The rules that were renamed the "U - ruleName" won't be renamed back.



Hmm, okay....one way "U - ruleName".

So, no way to reverse Secure Rules tick?



You can disable Secure Rules by checking it again and unchecking it back (in case it was enabled while you have reset user settings). However, this would not rename anything back.



Okay...."this would not rename anything back"....yes, that was my observation.
I assumed 'U-named' would be renamed. My apology for assuming.
Note to self: The rules that were renamed the "U - ruleName" won't be renamed back.
Thanks - Regards w Respect



Hello Alexandru,

... updated from 4.9.9.4 to 5.0.0.1 i have now an occult problem
with the sort-function of the rule-tabs. Any Tab will sort up or down,
except the Action-Tab (Allowed/Blocked) - occured in Win7 and Win8.1.
Can you confirm this or is any other user affected ?

Thank you for your work.

Greetings from Berlin to all other users of this fine piece of software.
Spec.Greetz to Alpengreis for DE-Translation



Thank you for reporting this. I confirm that there is a problem with the sorting on the Action column. I will fix it in the next version.



Windows Firewall Control v.5.0.0.2

Change log:
- Fixed: When connected to a VPN, the location displayed in Main Panel is empty.
- Fixed: Secure Rules remains enabled in WFC service even when 'Reset all settings to the default values' from the Options tab is executed. The Secure Rules checkbox is unchecked but it is actually enabled.
- Fixed: It is possible to create new firewall rules through Shell Integration even if the program is locked with a password.
- Fixed: Sorting on the Action column does not work in version 5.
- Fixed: Visual layout fixes in Main Panel.
- Updated: Installer was renamed to wfc5setup.exe.

Download location: https://binisoft.org/download/wfc5setup.exe
SHA1: 75a9664d7bd60aefd2bf41175b90c05862e4159a
SHA256: ae6ac4285ad62dd842344c2013db58c8ea6881b3b7c06665446db8f40c5cdccd

Best regards,
Alexandru



I didn't fix anything. Version 5.0.0.2 can be downloaded from the website and version 5.0.0.2 is available through auto update mechanism.



5.0.0.2 = Thanks



Perhaps it was a cache thing ...



so, it's okay to allow OCSP request traffic? @mood



FWIW ~ 5.0.0.2 with Reset all settings & Restore WF default + WFC recommended rules.



Yes, it's ok to allow it



Okay.... ExeRadarPro seems to run normal, regardless. I was not aware how RadarPro checked signature prior to WFC.
Thanks



Now everything is in order, thank you.

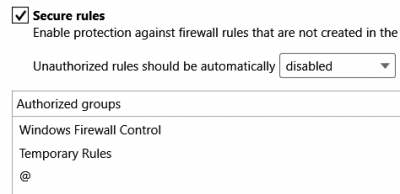

I'm still curious about my one U -@ rule. I have not added (as you can see) rule to Authorized groups "@".

Rule is disabled as per my preference for Unauthorized rules. Any comment as to what DiagTrack is and why no Program. Are Windows Store apps not recognized as a Program. Trying to use my one U -@ rule to understand Secure rules for Windows Store apps.

What's affected by not added DiagTrack rule to Authorized groups "@".
Just trying to use my one U -@ rule to understand Secure rules for Windows Store apps.
Thanks
