Simplewall-Firewall

Discussion in 'other firewalls' started by co22, Oct 25, 2016.

  1. co22

    co22 Registered Member

    Joined:
    Nov 22, 2011
    Posts:
    308
    Location:
    router
    Description

    Simple tool to configure Windows Filtering Platform (WFP) which can configure network activity on your computer.
    Features

    • Simple interface without annoying pop ups
    • Dropped packets logging (Windows 7 and above)
    • Internal blocking lists (malware, telemetry)
    • Free and open source
    • Localization support
    • IPv4/IPv6 support
    You can download either the installer or portable version. For correct working, need administrator rights.

    Homepage http://www.henrypp.org/product/wfptool

    i Was impressed how very well it work!
    its stand alone app that can work with or without windows firewall
    plus it seems no need dot net frame work
    nice ui and light in cpu and memory usage
    another note after allow program example firefox,you should restart firefox to connect to internet
    another note after setting rule you can close program.rules remain active

    Last edited: Oct 25, 2016
  2. Rasheed187

    Rasheed187 Registered Member

    Joined:
    Jul 10, 2004
    Posts:
    9,890
    Location:
    The Netherlands
    Interesting tool, is this basically a standalone firewall?

  3. co22

    co22 Registered Member

    Joined:
    Nov 22, 2011
    Posts:
    308
    Location:
    router
    i guess so,but in other word can work with windows firewall

  4. Adric

    Adric Registered Member

    Joined:
    Feb 1, 2006
    Posts:
    930
    When you run this exe for the first time, it tries to connect to 195.210.46.14 which is in Kazakhstan. Not sure why it needs to connect to the author's website.

    Last edited: Oct 27, 2016
  5. co22

    co22 Registered Member

    Joined:
    Nov 22, 2011
    Posts:
    308
    Location:
    router
    its try connect to its main site http://www.henrypp.org

  6. co22

    co22 Registered Member

    Joined:
    Nov 22, 2011
    Posts:
    308
    Location:
    router
    it have bug currently at least for me.time to time stop program from launching.
    i reported hope soon fixed.since its very good tool to me

  7. Djigi

    Djigi Registered Member

    Joined:
    Aug 13, 2012
    Posts:
    530
    Location:
    Croatia
    Try to set "Load on system startup" but when click "Apply" setting get un-checked?

    Clipboard01.jpg Clipboard02.jpg

  8. co22

    co22 Registered Member

    Joined:
    Nov 22, 2011
    Posts:
    308
    Location:
    router
    no i mean freeze other program not itself
    example,after an hour when i again try launch Firefox it window wont open but in ProcessHacker i see Firefox.exe running with around 9-10 mb
    but nothing happen.also after terminate it i see still Firefox running
    i am running windows 7

    Last edited: Oct 28, 2016
  9. Rasheed187

    Rasheed187 Registered Member

    Joined:
    Jul 10, 2004
    Posts:
    9,890
    Location:
    The Netherlands
    Probably because of auto-update, just about all apps do this nowadays. But did you test it? Does it really work independently of the Win Firewall?

  10. co22

    co22 Registered Member

    Joined:
    Nov 22, 2011
    Posts:
    308
    Location:
    router
    since its not install any driver i think not entirely free from windows driver
    i think it use bellow driver
    "Windows Firewall Authorization" service (mpsdrv=Windows Firewall Authorization Driver is a kernel mode driver that provides deep inspection services on inbound and outbound network traffic.)
    which Windows 10 Firewall Control use that too.
    but for sure not base on MpsSvc service
    and i tested it work 100% just that bug are bad

  11. mood

    mood Updates Team

    Joined:
    Oct 27, 2012
    Posts:
    3,102

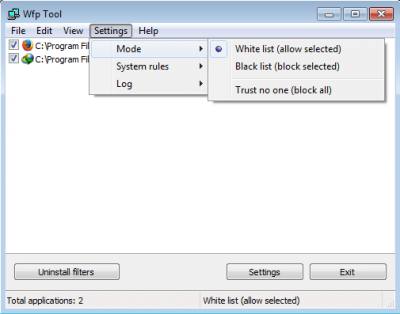

    See option:
    [X] Periodically check for updates (recommended)
    ------

    There is a new Release:
    Wfp Tool v1.3.2 (29 October 2016)
    http://www.henrypp.org/product/wfptool
    v1.3.2 (29 October 2016)

    • added domain\username indication to log events
    • added filter name to log events
    • added ip/port range support for rules
    • combined ip and port rules settings page
    • added save checkbox state on install/delete message
    • added listen loopback permission
    • added inbound events logging
    • set xml load encoding to auto
    • improved logic for detect incorrect applications
    • listview empty text indication doesn't changed at locale change
    • changed default log parameters for "system" & "svchost.exe"
    • fixed inbound ip doesn't affected in applied rules
    • changed default color for silent applications
    • removed output log into debug log feature
    • improved open/save file dialog flags
    • optimized log callback
    • updated blocklist
    • updated translation
    • minor improvements

  12. co22

    co22 Registered Member

    Joined:
    Nov 22, 2011
    Posts:
    308
    Location:
    router
    thanks for update
    edit:still have the same problem
    i have restart pc to work normal

    Last edited: Oct 28, 2016
  13. hjlbx

    hjlbx Guest

    There are some minor bugs, but looks like a really nice program. Testing on W7.
    • Logging only logs processes without allow rules
    • On my system it did not work until I enabled dropped packets logging & I had to reboot system
    • Application list does not always sort - especially if delete a program rule then re-add it; have to switch between sort modes to get list to sort
    • There is no filtering of early launch processes after system boot\restart
    • Not sure what one or two settings mean; no help file - e.g. "Do not block executable"

    Last edited by a moderator: Oct 28, 2016
  14. hjlbx

    hjlbx Guest

    Looks to me as if all the WIndows system32\sysWOW64 processes are auto - whitelisted; you will get no alerts.

    So if malware abuses a Windows process for which there is no existing explicit rule, then you will get no alerts since the default rule - without an explicit rule - is default allow.

    For example, if malware abuses cmd, cscript, wscript, etc - then there are no alerts.


    Startup programs are whitelisted and there are no alerts.

    Seems to me that the system is wide-open except for filtering of non-startup C:\Program Files and C:\Program Files (x86)

  15. Adric

    Adric Registered Member

    Joined:
    Feb 1, 2006
    Posts:
    930
    Okay, check for updates is the default when you run the app. I have not tested it yet. It will be a while before
    I can.

  16. co22

    co22 Registered Member

    Joined:
    Nov 22, 2011
    Posts:
    308
    Location:
    router
    i get the response from developer
    thanks to him his working on bug fix now,he has no time to create help file now
    other note from him

  17. hjlbx

    hjlbx Guest

    WARNING !!

    Uninstalling Wfp Tool does not return Windows Firewall and filtering for programs to a state prior to installing Wfp Tool unless...

    When you uninstall Wfp Toll - BEFORE DOING SO - you must:

    1. untick "Disable Windows FIrewall"; and
    2. Uninstall filtering

    Otherwise two things will happen:

    A. Windows Firewall and associated services will remain disabled and cannot be started (Error 0x8007042c) https://support.microsoft.com/en-us/kb/2530126
    B. Programs will not be able to connect to the internet

    In other words, if you do not do the above, the disabled Windows Firewall and program filtering will remain on system (in BFE Service\registry ?).

    You can correct this by reinstalling Wfp Tool and doing 1 and 2 above, but for 2 you must recreate all the rules that were present at the time you initially uninstalled it and then uninstall the filtering.

    What a mess...

  18. co22

    co22 Registered Member

    Joined:
    Nov 22, 2011
    Posts:
    308
    Location:
    router
    there is no such issues here
    when installing filter if you keep the tick of "Disable Windows firewall" firewall will be disabled if not it will remain enabled.example if you have wfc the icon of that program go to "!" sign.
    when uninstall filter if you keep the of "enable Windows firewall" windows firewall will be on you can check status by wfc or with built in windows firewall

    no disconnect issues happen here
    perhaps you tampered some service manually?
    long time i ago i do something like that and the a only program was able to restore my firewall is d7II.
    but if you really see there is problem email him or post on github
    but it have some other bug that prevent using it normally now.which he is working on it
    BFE Service is always on my pc and on VirtualBox without wfptool.not sure what you are talk about!

    Last edited: Oct 30, 2016
  19. mood

    mood Updates Team

    Joined:
    Oct 27, 2012
    Posts:
    3,102
    :eek:

    I see that you you filed an issue @ Github
    Maybe the author should implement a better "deinstaller" that enables the firewall and is uninstalling the filtering while it's deinstalled?

  20. hjlbx

    hjlbx Guest

    I hope so or Wfp Tool will be quickly labeled "Garbage..." -- which isn't really justified. There is no documentation so you have to find out the hard way.

    Smashed my networking for a minute until I figured it out.

  21. hjlbx

    hjlbx Guest

    I installed Wfp Tool. Used it for a couple of hours. Uninstalled it. After uninstalling Windows Firewall was disabled, Windows Firewall service was disabled, and some programs were blocked from internet access.

    I fixed it by following the procedure I posted here on this thread.

    It is as simple as that. I didn't tamper with any services.

    Bug hunting is how I earn my living - and all the soft publishers I deal with find my reports very reliable.

    Take your fanboyism somewhere else...

  22. co22

    co22 Registered Member

    Joined:
    Nov 22, 2011
    Posts:
    308
    Location:
    router
    wake up its not fanboyism there is no point for that.i am telling you there is a no such problem here then you talk fanboyis!
    if i have such problem really saying to you.
    but maybe that's such problem that happen for novice user i really don't know:)

  23. hjlbx

    hjlbx Guest

    Here is download link to video: https://mega.nz/#!xVpQDZ4J!q-lEGT5dJEGK4_Iph10e87xRwLot82lKqroUZBYEHZ4

    Find HTML5 folder > demo.html > right-click > Open with Google Chrome (use Chrome for best video quality)

    I can reproduce all reported issues at will. There are other videos at Github.

  24. mood

    mood Updates Team

    Joined:
    Oct 27, 2012
    Posts:
    3,102
    Later, if i have enough space :D
    "Your available browser storage for MEGA cannot handle this download size, please free up some disk space"

    I think one of the github-issues should be solved now (No Filtering of System32, SysWOW64 and Startup Processes #4)

  25. hjlbx

    hjlbx Guest

    No. No filtering of System32, etc is still happening. I am submitting video now.
