    hello everyone

    sorry my house was getting painted and every thing happen so fast i have to remove every thing didt get time to complete tutorial as expected time

    my sincere apologies


    what here i did is i make a common tutorial with screenshots which work with almost every distro so it worth reading

    i had made a 3 page tutorial for partition with gpatred toll for considering newbies in mind
    now the final 40% part installation is left and correction part

    i am considering fedora and mint to make a complete tutorial

    please if you guys have any other distro please make suggestions

    best regards

    mack

  2. cet

    cet Registered Member

    Joined:
    Sep 3, 2006
    Posts:
    867
    Location:
    Turkey/İzmir
    Is it possible to add suse 11.2 gnome as a 3 rd boot option?

    Thank you so much for taking time to make such a useful document.

    I am so exhausted of using computer in the last 2 weeks that I will go to a holiday next week and will not take my laptop with me.I hope I can stay without using a computer for 5 days.:argh:

    When I come back from the holiday I will definitely try dual booting.:D

  3. mack_guy911

    mack_guy911 Registered Member

    Joined:
    Mar 21, 2007
    Posts:
    2,677
    yes you can boot as many as you want dual....... triple boot....etc


    but its best if you decide which to put as your

    main distro with its bootloader

    which others to put second ..................

    wait for 4-5 days next week you see tricks to do it easy way

  4. linuxforall

    linuxforall Registered Member

    Joined:
    Feb 6, 2010
    Posts:
    2,136
    This is what I link for noobs trying to dual boot, thanks mack_guy911.

  5. lotuseclat79

    lotuseclat79 Registered Member

    Joined:
    Jun 16, 2005
    Posts:
    5,097
  6. mack_guy911

    mack_guy911 Registered Member

    Joined:
    Mar 21, 2007
    Posts:
    2,677
    how to do dual boot with 2 linux distros


    i am going to install 2 distros

    fedora and mintlinux on virtual machine


    now 1st step preparation
    get a paper and pen and make a blue print how to do it


    1st step most important select out of 2 distros which you want to be your default one

    if x distro give you boot problem then best way is select the second y one as your default distro


    make partitions using gparted tool

    before that please know you can make only 4 partitions

    best way is that make 3 primary and one extended (in extended you can create many logical partitions)

    for reference what is primary extended and logical please check

    http://en.wikipedia.org/wiki/Disk_partitioning

    http://www.pcguide.com/ref/hdd/file/structPartitions-c.html


    now all you need is gparted tool which is default installed in many distros
    ubuntu mint ...........etc even if you dont want to use ubuntu you can still run it from live medium

    and use gparted tool for creating partition table before making any real install


    now


    i am using ubuntu cd for partition and for that i am going to install fedora 13 and mint linux 9

    step 1 insert ubuntu cd in your disk drive and make sure your bios is set to boot from cd/dvd 1st

    step 2 when you get into ubuntu live session click on try ubuntu 10.04 LTS

    step 3 you get into live session from there

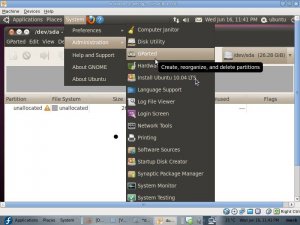

    system>administration>gparted (3rd option is gparted)

    step 4 click on gpatred and you see there your unallocated partition

    now write down on paper what partition you want to make and how much size you want to give to them

    example 1

    partition size of hardisk let say 500 gb


    50 / gb root partition (primary partition for mint root /)

    300 /gb home partition (primary partition for mint /home )

    then

    2gb swap (primary /swap partition which will work with both)

    extended

    148

    from there


    50 gb root logical

    98 gb home logical

    or

    just one partition

    148 gb root logical for other distro


    example 2 here in my case i am on virtual machine i have 26 gb whole partition

    so am going to make

    7 gb root primary partition
    10 gb home primary partition
    1 gb swap primary partition
    and

    rest extended



    and from there all left one into

    / for second distro


    now click on new to create partition and then ......

    A) new size tab i wrote 7167 mb (approx 7gb)

    B) in create as tab i scroll it to primary partition

    C) in file system tab i wrote ext4 (which is new default file system for many new linux systems)

    D) in label tab i label it as / (root)



    now here what i got

    partiton(1) 7gb / (root) ext4
    partition(2) 9.77 gb /home ext4

    partiton(3) 1gb linux swap

    partition(4) 8.50 gb extended nothing

    partition(5) 8.50 gb / (root) for another distro

    in any case you have done wrong delete and recreate it or undo it

    make it again and once you feel they are write for you then

    click on apply

    once you apply real partitions created


    now if you are not going to install distro from disk from which you create partitions remove it and put a distro you want to install

    now here is trick select the second distro 1st like for example you want to install

    mint and fedora and you want to put mint as your main distro with bootloder in it then install fedora 1st and install its bootloader in its own root partition

    (why because its easy when you install mint after is auto detect bootloader of second distro and add it in its default bootloader )


    Attached Files:

    Last edited: Jun 22, 2010
  7. mack_guy911

    mack_guy911 Registered Member

    Joined:
    Mar 21, 2007
    Posts:
    2,677
    more screen shots

    cont..........


    Attached Files:

    Last edited: Jun 22, 2010
  8. mack_guy911

    mack_guy911 Registered Member

    Joined:
    Mar 21, 2007
    Posts:
    2,677
    now we install fedora 1st as we have choose it as our 2nd distro so we install its bootloader in its own drive ie sda5 [partition(5) 8.50 gb / (root) for another distro]


    note:- if you have 1st hardisk it show sda for second hardisk it show sdb .....3rd sdc...........etc

    a,b,c is hardisk number and 1,2,3,4..........partitions numbers so we are having here is one hardisk and its partition number 5 ........so sda 5.


    now step 1 click on install fedora

    step 2 click on language of keyboard usa by default

    step3 click 3 click on basic storage devices

    step 4 select your drive (harddisk if you have one check on it)

    step 5 write your computer name {example: (localhostlocaldoman) default}

    step 6 select your time zone

    step 7 root password

    step 8 there this is very important step where we tweak

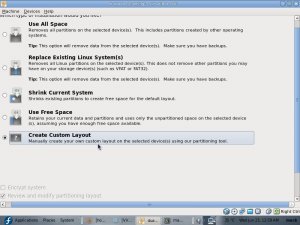

    step 8 select create the custom layout

    step 9 now select the partition you want to install fedora on here its sda5

    step 10 click on edit (why because we have already created partitions from gparted)

    step 11 set mount point to / (we do not need to formate as we formate if before if you get trouble you can check the formate icon as well)

    step 12 most important step

    step 12 check install bootloader and click on change device

    from master boot record change it to :- first sector of boot partition of second distro

    in simple words root partition where you installed the distro

    here

    change masterboot record -dev/sda (which is 1st sector of your hardisk)

    to

    first sector of boot partition - /dev/sda5 (where we install fedora /)

    if you done everything write then click next

    install complete


    now important notes:-

    main things need to be notice

    1st custom layout of partition where you give the path of your already created / partition for your second distro fedora

    2nd change bootloader from default mbr to path of / of fedora you installed which is same as above

    3rd when you done every thing you try to boot after that fedora wont boot why because boot loader not installed on mbr but root of fedora so dont need to be panicked when you install mint after words it will auto notice fedora boot loader and add it to its own and hence you can boot both fedora and mint


    now we are going to install mint ............


    Attached Files:

    Last edited: Jun 24, 2010
  9. mack_guy911

    mack_guy911 Registered Member

    Joined:
    Mar 21, 2007
    Posts:
    2,677

    Attached Files:

  10. mack_guy911

    mack_guy911 Registered Member

    Joined:
    Mar 21, 2007
    Posts:
    2,677
    now click on linux mint install

    step 1 click forward

    step 2 select time zone click forward (if time zone time show diffrent dont worry you can correct is manually later)

    step 3 keyboard layout click forward

    step 4 again important step

    step 4 select specify partitions manually (advance) and click forward

    step 5 select your partition here its sda1 and click on change

    then in small window

    select your filesystem ext4 and mount point / also if you want to formate check it

    step 6 select your other partition sda2 click on change

    select your filesystem ext4 and mount point /home also if you want to formate check it

    (please note that i have created the home partition separately if you have only one partition (/) just like in fedora you can skip that step)

    step 7 who you are? create your username and password


    step 8 click next and install


    note: there we dont need to change bootloader which is by default set to install in mbr so we skip advance step here and install

    after install you get mint and fedora both if you done it correctly :D


    Attached Files:

    Last edited: Jun 24, 2010
  11. mack_guy911

    mack_guy911 Registered Member

    Joined:
    Mar 21, 2007
    Posts:
    2,677

    Attached Files:

  12. mack_guy911

    mack_guy911 Registered Member

    Joined:
    Mar 21, 2007
    Posts:
    2,677
    last screen shots

    i also put a screen shot of advance here you dont need to do anything please skip that i just put it for refrance







    summery:-

    this way you can install any distro dual boot tripple boot or 100+ boot etc

    main things

    install the distro whose bootloader you want at the end (main distro) and install other distros 1st and their bootloader in their own / root partition path instead of mbr

    and create partitions with gparted tool before and from distros you want to install give their path or /...... /home etc......from their create custom partition option


    note :-
    if you want septate /boot partition best way is make the 1st partition (ie sda) and only create one boot partition for your main distro which get linked too all rest other installed distros

    :D



    THE END





    regards mack


    Attached Files:
