Block UDP Port

Discussion in 'LnS English Forum' started by shaunwang, Apr 12, 2006.

Thread Status:
Not open for further replies.
  1. shaunwang

    shaunwang Registered Member

    Joined:
    Mar 26, 2006
    Posts:
    94
    hi pros,

    I pretty new to LNS,

    I have couple a questions

    If I wanna block a certain range of UDP ports 25678-25679 example.

    I done this

    The source is from my pc to some other source

    1. Rule Name : Block certain UDP ports
    2. Directions : Outbounds ( Am I correct or what should I changed to block)
    3. Ethernet Type : all
    4. IP Protocol : UDP Fragoffset : ALL FragsFlags :ALL
    5. Source ( this sections all information are set as" ALL ")
    6. Destination
    - Ethernet:address = ALL
    - IP: Address = ALL
    - TCP/UDP:port = Equal Or 25678 / 25679

    from the rule above does this block the UDP port completely ??

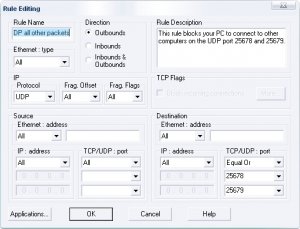

    I need some advice, for more information please refer to the screenshots to give you a better details.

    Thanks to any help.


    Attached Files:

  2. Thomas M

    Thomas M Registered Member

    Joined:
    Jan 12, 2003
    Posts:
    355
    Hello shaunwang,

    You could change the traffic direction from "outbound" to "inbound and outbound".

    Of course, don't forget to activate the red blocking symbol for this rule in the second column of Internet Filtering.
    In general, for >2 ports you need the option "in range A:B"

    Thomas :)

  3. shaunwang

    shaunwang Registered Member

    Joined:
    Mar 26, 2006
    Posts:
    94
    hi Thomas M

    thanks fro replying your solution is well apreciated.
