Image For Windows Question

Discussion in 'backup, imaging & disk mgmt' started by n8chavez, May 19, 2008.

Thread Status:
Not open for further replies.
  1. n8chavez

    n8chavez Registered Member

    Joined:
    Jul 19, 2003
    Posts:
    2,302
    Location:
    Location Unknown
    I am very impressed by the depth and detail that you can go in to using the command line option for IFW. I have added the following command to the drive context menu in order to further automate the process, without the password of course:

    My question is this, is it possible to change the command line so that it does a couple of things for me:

    1. That it changes the filename to a date and/or time stamp?

    2. That it asks where I want to save the image to, in case I wan to write it to an optical drive?

    Also, is there any way to only get this menu entry on my C:\ drive? I never back the others up

    Thanks

  2. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
  3. n8chavez

    n8chavez Registered Member

    Joined:
    Jul 19, 2003
    Posts:
    2,302
    Location:
    Location Unknown
    Wow, thatnks for this! But I must be a complete idiot because I don't know where to begin with this, or just how to accomplish what I want with .bat files. Is there any way to streamline or simplify the process?

    Either way, thank you. I'll try to wrap my head around this tomorrow?

  4. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
    The batch files I use are considerably simpler than those TeraByte ones. Simple but practical. They run on a schedule, twice daily. No input required from me. Image and verify done in the background.

    Let me know what you would like to do on an automatic basis.

  5. n8chavez

    n8chavez Registered Member

    Joined:
    Jul 19, 2003
    Posts:
    2,302
    Location:
    Location Unknown
    Pretty much everything I mentioned earlier; Full backup of an active partition (C:\), image file store on D:\ (filename by a date/time stamp), validates, validated bfb, standard compression, encrypted (all set the password later). If possible I'd like the option to create to an optical drive.

    Thanks for your help!

  6. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
    Do you have a folder containing the IFW Console files (imagewc.exe)? IFW GUI works, but not as nicely from a batch file. You can get imagewc.exe to run minimized. Not so with imagew.exe.

  7. n8chavez

    n8chavez Registered Member

    Joined:
    Jul 19, 2003
    Posts:
    2,302
    Location:
    Location Unknown
    No, I don't think I have the console. Where can I get it?

  8. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
  9. n8chavez

    n8chavez Registered Member

    Joined:
    Jul 19, 2003
    Posts:
    2,302
    Location:
    Location Unknown
  10. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
    OK. Put all the console files in D:\IFWC and I'll write a batch file for you. Give me 30 minutes to test it.

    While you are waiting, double click imagewc.exe and get a feel for how it runs manually.

    I assume your C: drive is in the first partition (w0@0x1)

  11. n8chavez

    n8chavez Registered Member

    Joined:
    Jul 19, 2003
    Posts:
    2,302
    Location:
    Location Unknown
    Yes, that's my C:\ drive.

  12. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
    Paste this code into Notepad. Save it as full.txt. Then rename the file to full.bat. Accept the warning.
    Double click full.bat. If will create C_full.tbi and then rename it to todays date. It will be in your D:\MyBackup folder.

    IFWC will run minimized but you can bring it out of the Taskbar to see what is happening.

    Let me know what happens.

  13. n8chavez

    n8chavez Registered Member

    Joined:
    Jul 19, 2003
    Posts:
    2,302
    Location:
    Location Unknown

    The bat file does run, once I changed the console location and entered a password. But the filenames are always the same, C_full.TBI, and are always overwritten when I create a new image. The image is originally named C_full.TBI during creation and the it is supposed to be rename according to the date after that, meaning that all images would, in effect, have the same name. But Windows can't allow that and the oldest one gets deleted.

    Last edited: May 19, 2008
  14. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
    Strange. In my computer

    changes C_full to a date.

    It's just an introductory batch file. Only designed to make one image per day. Tomorrows image will have a different name. You will need to make changes if you want more than one image per day.

    If you want to run it daily or weekly, then make a schedule from the batch file.

  15. n8chavez

    n8chavez Registered Member

    Joined:
    Jul 19, 2003
    Posts:
    2,302
    Location:
    Location Unknown
    I'm really confused now. I've used all combinations of both commands below that I could think of and I still am not having any success.

    Any ideas what could be going wrong? The IFW manual says that this is what I should use:
    “Backup on %~YYYY%-%~MM%-%~DD%”

    But it's not working in my command-line.

  16. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
    n8chavez,

    Many people want dates in the filename. I don't. I can see the date in the "Date Modified" column of Windows Explorer.

    I have a schedule that creates two differential images daily for a week. Then a full backup and more differentials. My diffs are simply labelled diff_01, diff_02, diff_03 etc. It's obvious on which date they were created. You probably hate this system. I can't help with dates as I've never taken an interest in learning how to do it.

    Does my batch file change C_full.tbi to 200508.tbi ?

    Did you put the console files in D:\IFWC? My batch file wants them in that folder.

  17. n8chavez

    n8chavez Registered Member

    Joined:
    Jul 19, 2003
    Posts:
    2,302
    Location:
    Location Unknown
    No, it doesn't. Nothing happens the filename.

    No, the console file are in the main IFW folder. But I've changed the .bat file accordingly.

  18. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
    It must be a Regional setting. I'll see if I can find the USA equivalent. I'm in Australia.

    Then you need to change the Path to

    You don't need Path info in the command line.

  19. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia

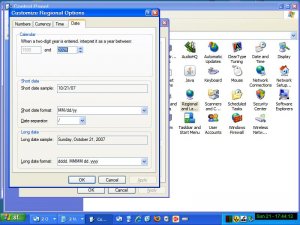

    In Regional and Language Options, Regional Options, Customize, Date Tab. Make sure your Short Date Format is MM/dd/yy

    That should fix it.

    You can test by using this batch file.

    Create test.txt in the same folder as the batch file. Run the batch file.

  20. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
    Was your original Short date MM/d/yy ?

  21. n8chavez

    n8chavez Registered Member

    Joined:
    Jul 19, 2003
    Posts:
    2,302
    Location:
    Location Unknown
    MM/dd/yy

  22. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
    Damn. My original one was d/MM/yy and it didn't work. dd/MM/yy works for me (Australia)

  23. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
    My mate in Florida uses this.


    Attached Files:

  24. Brian K

    Brian K Imaging Specialist

    Joined:
    Jan 28, 2005
    Posts:
    8,634
    Location:
    NSW, Australia
    n8chavez,

    Instead of this in the original batch file
    Try this

    It should create a dated folder with C_full.tbi inside the folder. You could add a 1, 2 etc to the folder name as the day progresses so the folder doesn't get over written.

  25. n8chavez

    n8chavez Registered Member

    Joined:
    Jul 19, 2003
    Posts:
    2,302
    Location:
    Location Unknown
    Okay, I got everything to work! :D

    I used this version:

    But what I did need to modify my regional settings from M/dd/yy to MM/dd/yy.
    Everything works fine now, as I want it to.

    Brian K - Thank you very much for your help. I appreciate it. If I can ever do anything for you please don't hesitate to ask.
