Heat sink fell off of North Bridge

Discussion in 'hardware' started by innerpeace, Feb 27, 2008.

Thread Status:
Not open for further replies.
  1. innerpeace

    innerpeace Registered Member

    Joined:
    Jan 15, 2007
    Posts:
    2,095
    Location:
    Mountaineer Country
    Hi, I installed a stick of RAM in my sister's computer tonight and I noticed it had a loose heat sink. I don't know what a North Bridge is, I'm only going by the info at this link. It is the square aluminum heat sink just to the lower right of CPU. According to the info it says Chipset "North Bridge" SiS760. If you look closely at the picture, you can see a metal bar on top of the heat sink that goes to a U-shaped clip that helps hold the heat sink in place. This clip was laying in the bottom of the case. The metal bar/spring runs from a clip on the upper right hand corner, down through the heat sink and to another clip to the lower left hand corner of the heat sink. I took the heat sink off because it was just hanging there. Is this able to be fixed? Are the U-shaped clips necessary to hold it in place? Can this be fixed without removing the MB?

    http://h10025.www1.hp.com/ewfrf/wc/...657&lc=en&cc=us&dlc=en&product=501310&lang=en

    Thanks,
    innerpeace

  2. innerpeace

    innerpeace Registered Member

    Joined:
    Jan 15, 2007
    Posts:
    2,095
    Location:
    Mountaineer Country
    Ok, after a little searching. It's been mentioned that thermal tape might work. Does anyone have any experience with using thermal tape? There is another link that involves replacing the hooks on the motherboard with closed loops made from paper clips. http://www.overclockers.com/tips1180/

  3. Eagle Creek

    Eagle Creek Global Moderator

    Joined:
    Jul 27, 2004
    Posts:
    734
    Location:
    The Netherlands
    Hi!

    The north bridge is your communication device between the CPU/RAM/GPU and the other hardware (basically). If you want to know more about this, you can read this article at Wikipedia which seems pretty accurate.

    Anyway: maybe I don't get the question, but why don't you attach the heat sink using the metal clip? I don't see you mentioning anything about it being broken.

  4. innerpeace

    innerpeace Registered Member

    Joined:
    Jan 15, 2007
    Posts:
    2,095
    Location:
    Mountaineer Country
    Hi Eagle Creek, Thanks for your reply and the description of what a North Bridge does. The whole thing is really hard to explain. The motherboard has 2 U-shaped clips diagonal from each other that holds a metal spring clip that keeps the heat sink in place. One of the U-shaped clips fell out. From searching, it looks like they are soldered to the motherboard. If you look in the overclockers link that I posted, you will see what I mean when i say U-shaped clip.

    I've also read that there is a thermal adhesive that might work to hold the weight of the heat sink without using the metal spring clip. I would need input about this because if the heatsink were to fall off, it could short circuit whatever is below it.

  5. InfinityAz

    InfinityAz Registered Member

    Joined:
    Jul 23, 2005
    Posts:
    828
    Location:
    Arizona
    innerpeace,

    I don't have any experience with thermal tape but I would be concerned that gravity would win in the end since the mobo is probably mounted vertically in the case.

    If it was me, I would probably add an additional small fan to the case and situate it so it blows directly on the northbridge and out toward the back of the case. If possible you might try getting temperature readings from the northbridge before and after installation of the fan and see what difference it makes.

    You can check newegg.com and many other places for fans, etc.

    Good luck.

  6. Hairy Coo

    Hairy Coo Registered Member

    Joined:
    Oct 19, 2007
    Posts:
    1,486
    Location:
    Northern Beaches
    Would use the thermal tape or paste to ensure best conductivity between GPU and sink,if you have any ,then refix the heatsink with the clips-these clips are always awkward,but have to apply pressure so conductivity results.
    You probably will find inset holes somewhere to receive one end of the clips-unlikely to have been soldered

  7. WSFuser

    WSFuser Registered Member

    Joined:
    Oct 7, 2004
    Posts:
    10,632
    If you cant get the hooks fixed and think thermal tape may be too weak, consider using thermal epoxy.

    Just be warned that it acts like glue, so that heatsink will be fixed to the northbridge.

  8. Eagle Creek

    Eagle Creek Global Moderator

    Joined:
    Jul 27, 2004
    Posts:
    734
    Location:
    The Netherlands
    I do understand now. Interesting issue though and I haven't seen this before (didn't come the PC with some kind of warranty?).
    As far as I know, those clips are soldered indeed. Although the chip wouldn't short circuit, there is a chance of overheating.

    I think gravity is stronger than the tape, since those tapes are primary meant for cooling purposes and not taping stuff together.

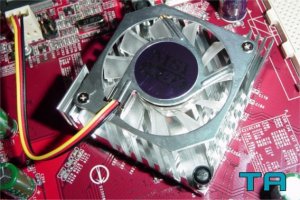

    Maybe you could mount a small fan on top of the chip (something like the fan I've attached).
    I've also attached an image of a motherboard that has a fan installed by default.
    Such a small fan weighs considerably less then a heat sink so maybe it's held in place by only using tape.


    Attached Files:

  9. innerpeace

    innerpeace Registered Member

    Joined:
    Jan 15, 2007
    Posts:
    2,095
    Location:
    Mountaineer Country
    Thanks everyone :). Eagle Creek, that bottom left picture is what I'm talking about. See that thin metal paper clip sized wire holding the heat sink in place. It's running through the middle of it which you can't see.

    I might have a solution. I think this is what WSFuser was suggesting. There are 2 different kinds of Artic Silver thermal adhesives. From the reviews, it is permanent and will hold up to gravity no bigger than the heat sink is. What do you think?

    http://www.newegg.com/Product/Product.aspx?Item=N82E16835100013 (I think this stuff would be easiest as it's non conductive)
    -or-
    http://www.newegg.com/Product/Product.aspx?Item=N82E16835100005

  10. Eagle Creek

    Eagle Creek Global Moderator

    Joined:
    Jul 27, 2004
    Posts:
    734
    Location:
    The Netherlands
    I don't know if that will work but it's worth a try :).

  11. innerpeace

    innerpeace Registered Member

    Joined:
    Jan 15, 2007
    Posts:
    2,095
    Location:
    Mountaineer Country
    Thanks, I don't know either. One of the reviews of the adhesive stated that when he tried to remove a heatsink later, part of the chip broke off and not the area that was bonded. That would be similar to a weld.

    By the way, when I mentioned the picture in the lower left hand corner, the pics keeps shuffling from left to right. To be clear, it's the gunmetal colored heat sink that is spiked looking. I'm mentioning this in case someone searches for the same problem.

    Cheers

  12. Hairy Coo

    Hairy Coo Registered Member

    Joined:
    Oct 19, 2007
    Posts:
    1,486
    Location:
    Northern Beaches
    Try inserting the end of the clips into the hole at the position shown in the pic.,where the clipleg is exiting,usually the ends are angled so need shoving in-then re-lock the heatsink.

  13. markymoo

    markymoo Registered Member

    Joined:
    Sep 25, 2007
    Posts:
    1,212
    Location:
    England
    sounds like the clip sprung out of its hole.

  14. Rilla927

    Rilla927 Registered Member

    Joined:
    May 12, 2005
    Posts:
    1,710
    I was looking at your picture of the NB trying to see if there were holes to mount a third party NB cooler. These are measured from hole to hole diagonally. The Enzotech works real well.
    http://www.performance-pcs.com/catalog/index.php?main_page=product_info&cPath=197&products_id=23200&zenid=04b6d263f51bb1d4341c75520b23c063

    If there are no holes you really don't have much of a choice but to use something like Artic Alumina so it will never come off but you have to make sure you don't put too much on (can result in more heat) and not not too little either cuz once you put in on it's a pain to get off. It's not impossible, but it can be a headache when you have to take it off for any reason so it's important to get it on the first shot.


    If you need to remove it again you can set up Prime95 and run it at full load for a bit and it should come off easily. I have seen guys use hair dryers (and some burnt mobo's) the freezer, steam. If for any reason you need to some what pry, make sure you don't scratch the chip

    You will need some Artic Clean Thermal Material Remover and Surface Purifier to remove what ever is on there already. Every bit has to removed before the new goop is applied. Some folks say just to use alcohol but it doesn't work near as well as this. A small piece of a 100% cotton works excellent a long with the Artic Clean to wipe and clean everything off. In this link Artic Alumina is $2.99, Artic Clean $5.95.
    http://www.performance-pcs.com/catalog/index.php?main_page=index&cPath=58&zenid=04b6d263f51bb1d4341c75520b23c063

  15. markymoo

    markymoo Registered Member

    Joined:
    Sep 25, 2007
    Posts:
    1,212
    Location:
    England
    I still use 99% pure Isopropyl Alcohol it alot cheaper and can get easier. Does the job great.

  16. Hairy Coo

    Hairy Coo Registered Member

    Joined:
    Oct 19, 2007
    Posts:
    1,486
    Location:
    Northern Beaches
    I usually use a bit of local beer-pretty potent! seems to keep the chip happy too.

  17. innerpeace

    innerpeace Registered Member

    Joined:
    Jan 15, 2007
    Posts:
    2,095
    Location:
    Mountaineer Country
    Yes, but the hole or the U-clip popped out of the motherboard. In this link I posted above, if you look at the red circled lines in the 2nd pic, it shows how the u-clips are normally attached to the motherboard. If you look in the 4th pic, the u-clips are clearly shown. The pic labels them as motherboard loops.

    @ Rilla927, Thank you, I'm glad to hear from someone who has used the adhesive. I will follow your advice and hopefully I won't screw it up. I have heard some say that alcohol leaves a residue behind, but many use it anyways. Since it's not my computer, I will probably use the alcohol LOL.

  18. markymoo

    markymoo Registered Member

    Joined:
    Sep 25, 2007
    Posts:
    1,212
    Location:
    England
    just don't drink it when you do.

  19. markymoo

    markymoo Registered Member

    Joined:
    Sep 25, 2007
    Posts:
    1,212
    Location:
    England
    you really have to remove your motherboard to feed the clip back. on some boards now with diagonal mounting they usually plastic studs with springs that you can push down and it forces it way in and widens to hold it in place. in all this time you could of removed the board and put it back it be good practice for your next build.

    pure isopropyl alcohol doesn't leave a residue it evaporates to nothing. if it doesn't it's because theres other chemicals in it like acetone. over there they sell rubbing alcohol which is ony 70% isopropyl alcohol. which they wrongly call pure isopropyl alcohol. this isn't the proper stuff. incidentally Akasa do a good one called Tim Remove. in fact tape head cleaner does a fine job.

    Last edited: Feb 29, 2008
  20. innerpeace

    innerpeace Registered Member

    Joined:
    Jan 15, 2007
    Posts:
    2,095
    Location:
    Mountaineer Country
    Yikes, I just checked the bottle of isopropyl alcohol I have and it's only 50%. I'm sure I can find 99% somewhere.

    I really don't want to remove her MB. I couldn't live with the guilt. Especially since I talked her into getting a 512MB stick of RAM so she now has 704MB. Her PC doesn't even have a case fan.

  21. Eagle Creek

    Eagle Creek Global Moderator

    Joined:
    Jul 27, 2004
    Posts:
    734
    Location:
    The Netherlands
    I'm using "Alcohol Ketonatus 96%" and it doesn't leave any residu behind.

  22. Mrkvonic

    Mrkvonic Linux Systems Expert

    Joined:
    May 9, 2005
    Posts:
    8,696
    Hello,

    Most curiously, my nb fan died yesterday, too! There was no apparent influence on the chip (no additional heating), but I couldn't bear the chance so I tried to replace it.

    What a nightmare ... I had to break both pins to remove it. Then, I put in a new thermaltake thingie - it's a beast, it sounds like an airplane taking off.

    I also replaced the forward case fan (120mm) with a new arctic cooling one. It works fine and the HDs do not heat any more than before, but SpeedFan now does not read it for some reason ...

    Oh woes!

    I had to shut down this particular comp the first time since June 2006 ...

    Mrk

  23. WSFuser

    WSFuser Registered Member

    Joined:
    Oct 7, 2004
    Posts:
    10,632
    Maybe its only a two wire fan (thus missing the third wire for speed sensing).
