ADinf32

Discussion in 'other software & services' started by FanJ, Mar 22, 2005.

Thread Status:
Not open for further replies.
  1. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    The purpose of this thread is to give you some info about ADinf32.

    ADinf means Advanced Diskinfoscope.

    The site:
    http://www.adinf.com/

    You might like to consider ADinf32 as a file integrity checker.
    It will build up a database (table) of the files on your system.
    It will warn you about file changes, new added files, and deleted files.

    ADinf comes in several versions.
    ADinf for DOS.
    ADinf32.
    ADinf32 Pro.

    This thread is about ADinf32 (for Windows).

    ADinf32 and ADinf32 Pro are not free.

    The main difference between ADinf32 and ADinf32 Pro is that the Pro version can use a stronger HASH algorithm: LAN64.

  2. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    I will try to give you an impression of ADinf32 by giving several screenshots of the program.

    Please keep in mind :
    Screenshots are taking from a Windows 98 SE system.
    The Windows version is a Dutch version, so a few lines might be in Dutch.
    I have edited out several private parts in those screenshots.

  3. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    As for any advanced program, there are lots of settings that you can change.

    It is all up to you which settings you like.

    In the screenshots some settings are the default settings, some are changed.

  4. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    Of course the Helpfile gives you also lots of information.

  5. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    OK, here we go.

    I start ADinf32 manually and get the following screen


    Attached Files:

  6. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    Clicking OK gives this


    Attached Files:

  7. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    Before I let ADinf32 scan my system, I would like to give you some screenshots about its settings.

    So for the purpose of this learning thread I click Options.

    I get the following screen.

    Note:
    The Dutch words "Eigenschappen voor" are in English "Properties for"


    Attached Files:

  8. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    I click the Properties button to give you an impression about the available settings.

    I get this screen.

    Again: I would like to warn you that I have edited out several parts in all the following screenshots.


    Attached Files:

  9. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564

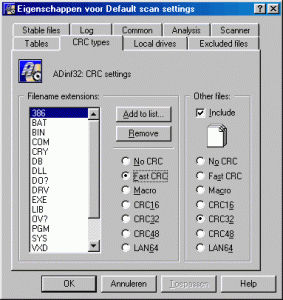

    Now I am going to give you screenshots of all those available options.

    This one is for the settings of :
    which file types you want ADinf32 to check for,
    and which HASH algorithm it will use.


    Attached Files:

  10. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    Here comes the menu for the drives settings.

    A very important option is: Drive Acces Type

    As you see, I have chosen BIOS Call on my W 98 SE machine.

    This is one of the most important parts of ADinf32 !!!

    Here are coming quotes from the Helpfile:

    Disk Access Methods

    ADinf32 checks a drive by reading disk sectors and parsing its file system. There are several ways to read disk sectors referred to as disk access methods. A brief explanation of the existing methods is given below.

    Windows 95/98 and OSR2 offer three access methods:

    · Access via BIOS
    This is the fastest and most reliable method used by default for the majority of drives. Disk sectors are read by direct calls to BIOS virtual image for Windows’95 16-bit tasks.
    · Access via Int13h
    Sectors are read via the 13h interruption. This method is used when a disk cannot be accessed via BIOS.
    · Access via VWIN32
    The sectors are read through calls to vwin32 virtual driver that provides 32-bit applications with an interface for direct access to logical drive sectors. This method can be used to access compressed drives or drives that, for some reason, cannot be accessed via BIOS or Int13h.

    Under Windows NT ADinf32 supports two access methods:

    · Physical Drive Access
    Disk sectors are read via calls to a physical disk driver. This method is the fastest and most reliable. It is used by default for the majority of drives.
    · Logical Drive Access
    Disk sectors are read via calls to a logical disk driver. This method is used when a disk cannot be accessed as Physical Drive.

    Notes.

    1.*To perform disk scan under Windows NT, you must have the Administrator’s privilege.

    2.*ADinf32 sets optimal access methods for logical drives. Change these settings only if a drive cannot be accessed via the default method.

    === end quotes ===


    Attached Files:

  11. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    The menu for the exclusions:


    Attached Files:

  12. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    The menu for so-called stable files.

    Any change in files marked as Stable, are treated as suspicious.


    Attached Files:

  13. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    The menu for more common settings


    Attached Files:

  14. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564

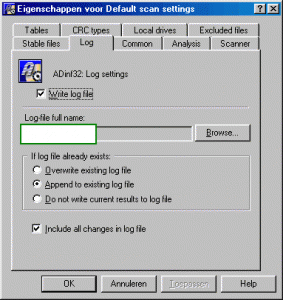

    The menu for your log settings.

    I myself move my logs manually to another place where I give them a date, and -depending on how important the changes were- some more info.


    Attached Files:

  15. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564

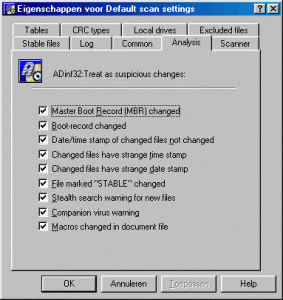

    The type of Analysis I want ADinf32 to perform.


    Attached Files:

  16. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    The menu where you can tell ADinf32 to cooperate with an Anti-Virus program.


    Attached Files:

  17. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    Well, so far I have shown you the menus where you can set up your ADinf32.

    Now I am going back to the actual scanning.

    Here is a screenshot of ADinf32 doing its scanning.


    Attached Files:

  18. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    The scanning is ready.

    ADinf32 pops up with a warning that there might be a virus.

    Well, I knew that there wasn't a virus, but it gives you an impression of a warning.

    As with all these kind of scanners:
    It is the user who has to decide whether a change is legit or not !!!


    Attached Files:

  19. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    Now I click away that previous screen, and I get the main summary info window of ADinf32 after its scanning.


    Attached Files:

  20. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    Now I want to see the changes, so I click All.

    Part of the screen is shown in the following screenshot.
    Some parts are edited out by me (I told you before that I would do that).

    You see two files marked with a red !.
    Those are the files that ADinf32 warned me about.
    Both files are Outlook Express folders.
    I knew already that there was nothing wrong with them.
    But once again: as with all these kind of scanners, it is the user who has to decide whether a change is legit or not.

    BTW: the Dutch word "verzonden" is in English "sent".


    Attached Files:

  21. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    OK, let's say I want to have more info about that changed OE file "Verzonden items.dbx"
    (sent items in English).

    I right click on it and get a new window.


    Attached Files:

  22. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    The changes info tab for it:


    Attached Files:

  23. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    And the Warning tab for it.


    Attached Files:

  24. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    I could go on with other examples about file changes (changed files, new added files, deleted files).
    But once you know how things work for different programs, you will be quite familiar with changes.

  25. FanJ

    FanJ Updates Team

    Joined:
    Feb 9, 2002
    Posts:
    2,564
    OK, I have seen all changes.
    So now it is time to exit it.

    I get this screen


    Attached Files:
